باکس  سیگما (فول اکتیو) – sigma box

Sigma Box with Cable Set is a brand new phone flashing and mobile unlocking tool that allows you to service the latest MTK, TI OMAP, Broadcom and Qualcomm based phones

Pack 1 Activation for Sigma Box enables direct unlock and repair IMEI features for the latest Motorola TI smartphones along with unique Yoda method of unlock/get unlock codes for the newest MTK-based Motorola, Alcatel, Huawei, ZTE and Lenovo smartphones

Pack 2 Activation for Sigma Box enables service features for the latest Qualcomm Hexagon smartphones

Pack 3 Activation for Sigma Box enables FRP REMOVE feature for Hi-Silicon Huawei Android and Qualcomm Huawei Android smartphones

:Sigma – Supported Platforms and Features

Sigma – MTK Features

Read Codes/Unlock

    :Direct Unlock

Android smartphones based on MTK CPU supported
Alcatel, Motorola, ZTE and other MTK brands
Huawei with old and new security types

There is no need to select model from the list
Standalone solution, doesn’t need any server codes or credits
All firmware versions and provider IDs are supported
Fast unlock procedure
Read User Code (unlike using “format FFS”, no private information will be lost)

:Read/generate all types of codes

:Motorola EX-series, Huawei, Android smartphones etc

NP (Network Personalization) code
NSP (Network Subset Personalization) code
CP (Corporate Personalization) code
SP (Service Provider Personalization) code
SIMP (SIM Personalization) code
NS-SP personalization code
SIM-C personalization code

:Alcatel, Motorola WX-series

NCK (Network Control Key) code
NSCK (Network Subset Control Key) code
SPCK (Service Provider Control Key) code
CCK (Corporate Control Key) code
PCK (Personalization Control Key) code

:Support of specific firmware and hardware versions

Models locked with “hardware lock
Models with auto SP-lock
Models with more than one SIM
Models with disabled unlock code menu

Unlock Code Calculation by IMEI

Supported models: Alcatel / Motorola / Orange / TCL / Vodafone / T-Mobile / TMN / ZTE
Internet connection is not required for code calculation
Standalone solution, doesn’t require server codes or credits
No limit for quantity of codes calculated per day

Flash/Backup

SigmaKey flash files are stored in *.skf format
Read phone’s firmware version
COM port speed – up to 921600 bps
Read & Restore backup
Upgrade firmware (restore backup from one phone into another)
Upgrade and downgrade firmware version
Huge flash files archive
Correct firmware upgrade for Alcatel models (works with CUST PARA area)
Smart (fast) write mode
Simple write mode
Works with NAND and NOR flash chip type

IMEI

Repair IMEI, including models with more than one SIM
Repair Software IMEI (phones with IMEI located in file system)
Repair Hardware IMEI (phones with IMEI located in OTP area flash chip)
Repair IMEI for Huawei models with new security type
Repair Blank IMEI

:Repair Security Area

Repair Security Area for Alcatel cell phones (flashing method)
Diagnostics and Security Area Repair for Huawei cell phones (models with new security type)
:Repair of the following software errors

Software Error 23
Software Error 4
Software Error 3
Software Error 20
Other types of software errors

:Phones file system

Works with FFS through boot mode (allows to export information from the phone’s FFS zone even if the handset is dead, but file system of the set is not damaged)
Works with network calibrations (backup and restore)
Works with phone’s flex (backup and restore)
Phone book backup
Format file system

:Other Options

Works via UART interface (virtual or physical COM-ports)
External RAM testing
Accelerating execution of operations (boost mode)
Autodetect MTK boot speed
DTR & RTS serial port control
Multilingual software interface

Sigma – Qualcomm Features

Unlock code calculation by IMEI

Supported phone brands: Alcatel, ZTE, TMN, T-Mobile, Motorola and other brands
Internet connection is not required for code calculation
Standalone solution, doesn’t require server codes or credits
No limit for quantity of codes calculated per day

Direct unlock

Acer, Alcatel, ZTE, Huawei, Sony, Motorola: Smartphones, Phones and Tablets
Unlock via USB cable
Heuristic method which allows user to unlock device even if it has an unknown firmware version
Reset the counter of code entry attempts
Support for smartphones with Android and Firefox OS
Support for Qualcomm Hexagon smartphones

Locked bootloader

:Huawei smartphones with the locked bootloader

Read / Reset botloader Unlock Password
Relock Bootloader without any traces left in the firmware

Root Solution for Supported Android Smartphones

Various Android versions supported for Root / Unroot
Enable Diagnostic port feature

Repair security area

:Alcatel smartphones

Repair corrupted security data file

:Huawei smartphones

Repair security area
Enable firmware downgrading

Sony Android smartphones

Read all types of codes

:Alcatel, Motorola, Huawei smartphones

NCK (Network Control Key) code
NSCK (Network Subset Control Key) code
SPCK (Service Provider Control Key) code
CCK (Corporate Control Key) code
PCK (Personalization Control Key) code

:ZTE smartphones

NCK code (Old and New Security)
Repair corrupted security data file

Show the number of wrong code entering attempts

Read phone code

ZTE phones

Unlock code calculation by IMEI

Supported phone brands: Alcatel, ZTE, TMN, T-Mobile, Motorola and other brands
Internet connection is not required for code calculation
Standalone solution, doesn’t require server codes or credits
No limit for quantity of codes calculated per day

IMEI repair

Motorola smartphones
Sony smartphones
ZTE phones
ZTE smartphones
Huawei smartphones

Enable Diagnostic port

This feature is supported for some Qualcomm-based devices

:Factory Reset Protection Remove (FRP)

FRP reset for new Huawei smartphones

Sigma – Broadcom Features

Direct unlock

Alcatel, ZTE, Vodafone smartphones

No need to type in codes into the phone after unlocking
Unlock via USB cable

Wrong Code Counter Reset
Automatically, without flashing

IMEI repair

Read all types of codes

NCK (Network Control Key) code
NSCK (Network Subset Control Key) code
SPCK (Service Provider Control Key) code
CCK (Corporate Control Key) code
PCK (Personalization Control Key) code

Sigma – TI OMAP Features

Direct unlock

Motorola Android Smartphones running on Texas Instruments
Unlock via micro-USB cable
Phone has to be rooted before unlocking procedure
Reset the counter of code entry attempts
More details on Sigma Features can be viewed on the manufacturer’s website

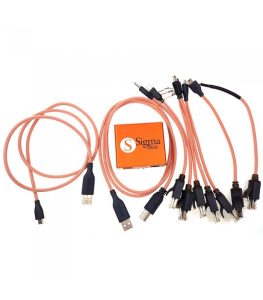

:SigmaBox – Package Content

SigmaBox – 1 pc
Virtual Activation Code for Pack 1 + Pack 2 + Pack 3
year (with 20 GB download limit) of FREE access to the premium flash file

:Set of cables – 9 pcs

TX/RX/GND cable
Cable for Fly DS105/DS120
Micro-USB cable for Alcatel OT-series, Motorola EX-series, Motorola WX-series
Cable for Fly Q420/E176, Huawei G7010/G6150
cablefor Huawei G7007/G6603Mini-USB
Cable for Alcatel OT-series, Motorola WX-series
cable for Motorola EX108/EX116
Regular micro USB cable
USB A to B cable

Extended step-by-step user guide and video tutorials
Professional technical support
